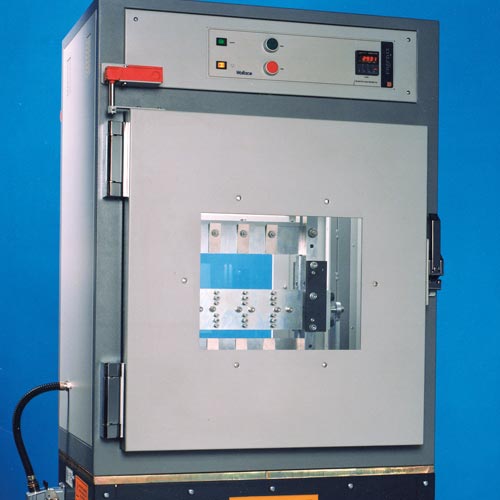

De Mattia Flex Testing Machine - F15

De Mattia Flex Testing Machine (Unheated version)

Features

  • Easy access cabinet or oven versions
  • Cycle counter fitted with 9 - 999,999 cycles allowed/test
  • Internal illumination fitted
  • Balanced main shaft ensures smooth operation
  • 60oC to 150oC temperature range on oven versions
  • Motor cut outs fitted to both doors

To find out more about this product contact Wallace

General Information

The Wallace range of Flexing Machines is used to test specially moulded samples for resistance to cracking or cut growth by repeated flexing. Flex testing is recommended when the flexing encountered in service is liable to simulate the action of the test. (e.g. tyre sidewalls).

Cracking and cut growth increase with increasing cycles. The tester is stopped at intervals specified and the cracks evaluated.
Two sets of grips on either side of the frame are reciprocated at constant frequency for a preset number of cycles controlled by a cycle counter.

Samples are loaded so that they are flat when the grip are tightened and flexed but not elongated during tester operation.
The range consists of 6 machines capable of handling 12, 24 or 36 samples in either an unheated cabinet or an oven with digital temperature control having a range of 60°C to 150°C. Easy access to the interior of all six machines is provided through side pivoted front and rear doors. Four recessed lamps provide interior illumination and knurled flywheel is used to rotate the mechanism for easy sample loading. The main shaft is fitted with a balance weight to ensure smooth running.

General Information

Unheated Cabinet

12 Samples

F15/12

24 samples

F15/24

36 samples

F15/36

Accessories

Test pieces are moulded with a groove in which cracking takes place and moulds are available under the following references:

  • Three cavity specimen mould     F1/1
  • Six cavity specimen mould          F1/1/1
  • Piercing Tool with needle            F1/3 (BS, ASTM, & SATRA versions available)



Specifications

See the table below for a run-down of this product's specifications.Specifications



F15/12

F15/24

F15/36

Dimensions
(h x w x d)

1210 x 710 x 570mm

1210 x 710 x 570mm

1210 x 710 x 570mm

Total Weight

210 Kg

210 Kg

210 Kg

Ambient Temperature Range

15-35°C

15-35°C

15-35°C

Supply Frequency

50-60 Hz

50-60 Hz

50-60 Hz

Max Power

1400W

1400W

1400W

Standards

The Wallace range of DeMattia Flex Testers conform with the following international standards:

  • BS 903 Pt A10 1999 - BSISO 132 1999
  • BS 903 Pt A11 1985 - ISO 133 1983
  • ASTM D 430 - 95 - method B
